Using the Music Database

In Chapter 4, we showed you how we understood the requirements for storing a music collection and how we designed the music ER model. We also introduced the steps you take to convert an ER model to a format that makes sense for constructing a relational database. For convenience, we’ve reproduced the music database ER diagram in Figure 5-1. In this section, we show you the structure of the MySQL database that we created after converting the ER model into SQL statements. We don’t explain the SQL statements we used to create the database; that’s the subject of Chapter 6.

The ER diagram of the music database

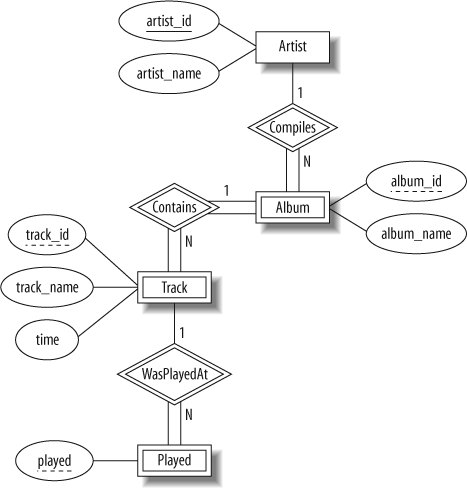

Figure 5-1. The ER diagram of the music database

To begin exploring the music database, connect to the MySQL monitor using the root MySQL account. For Mac OS X or Linux, run a terminal program, and in the terminal window type:

$ mysql --user=root --password=the_mysql_root_password
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 3 to server version: 5.0.22

Type 'help;' or '\h' for help. Type '\c' to clear the buffer.

mysql>

For Windows, click on the Start menu, then on the Run option, and then type cmd and press Enter. In the DOS or command window, type:

C:\> mysql --user=root --password=the_mysql_root_password Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 3 to server version: 5.0.22 Type 'help;' or '\h' for help. Type ...
