Local disk configuration policies

This policy is used for local disks' RAID configuration. Based on the number of local disks and RAID controller model, different RAID options include 0, 1, 5, 6, and 10. Perform the following steps to configure this policy:

1. Log in to UCS Manager.
2. Click to expand the Servers tab in the navigation pane.
3. Click on the Policies tab and expand root.

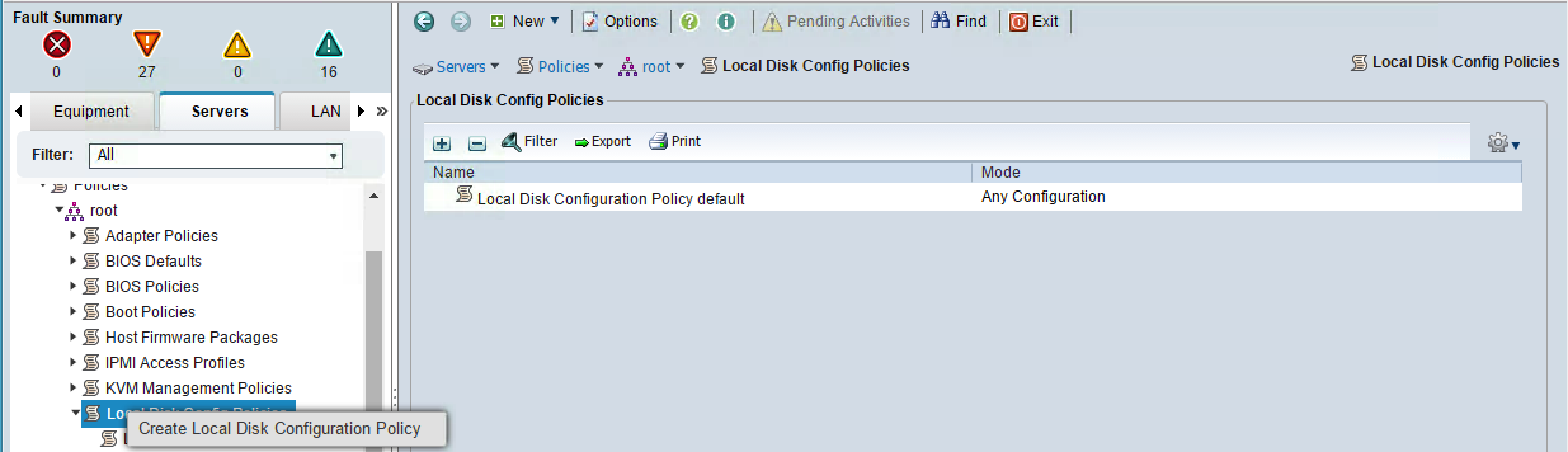

4. Right-click on Local Disk Config Policies, and on the pop-up menu that appears, click on Create Local Disk Configuration Policy:

5. Assign a Name and a short Description to the local disk configuration policy.
6. Select a RAID level from the pop-up menu.
7. Select the Protect ...
