HTTP/2

Binary Framing Layer

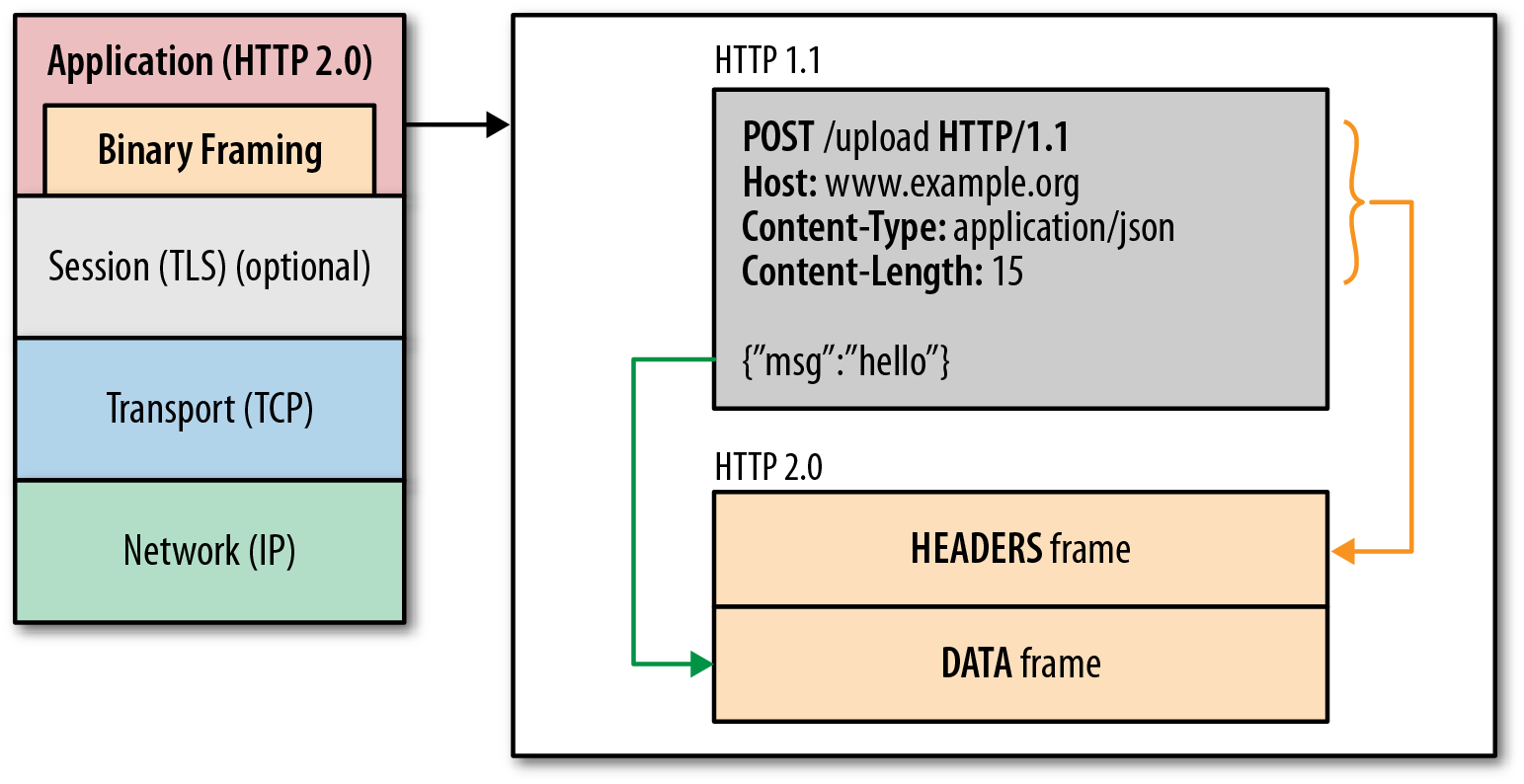

At the core of all of the performance enhancements of HTTP/2 is the new binary framing layer (Figure 1-1), which dictates how the HTTP messages are encapsulated and transferred between the client and server.

The “layer” refers to a design choice to introduce a new optimized encoding mechanism between the socket interface and the higher HTTP API exposed to our applications: the HTTP semantics, such as verbs, methods, and headers, are unaffected, but the way they are encoded while in transit is what’s different. Unlike the newline delimited plaintext HTTP/1.x protocol, all HTTP/2 communication is split into smaller messages and frames, each of which is encoded in binary format.

As a result, both client and server must use the new binary encoding mechanism to understand each other: an HTTP/1.x client won’t understand an HTTP/2 only server, and vice versa. Thankfully, our applications remain blissfully unaware of all these changes, as the client and server perform all the necessary framing work on our behalf.

Streams, Messages, and Frames

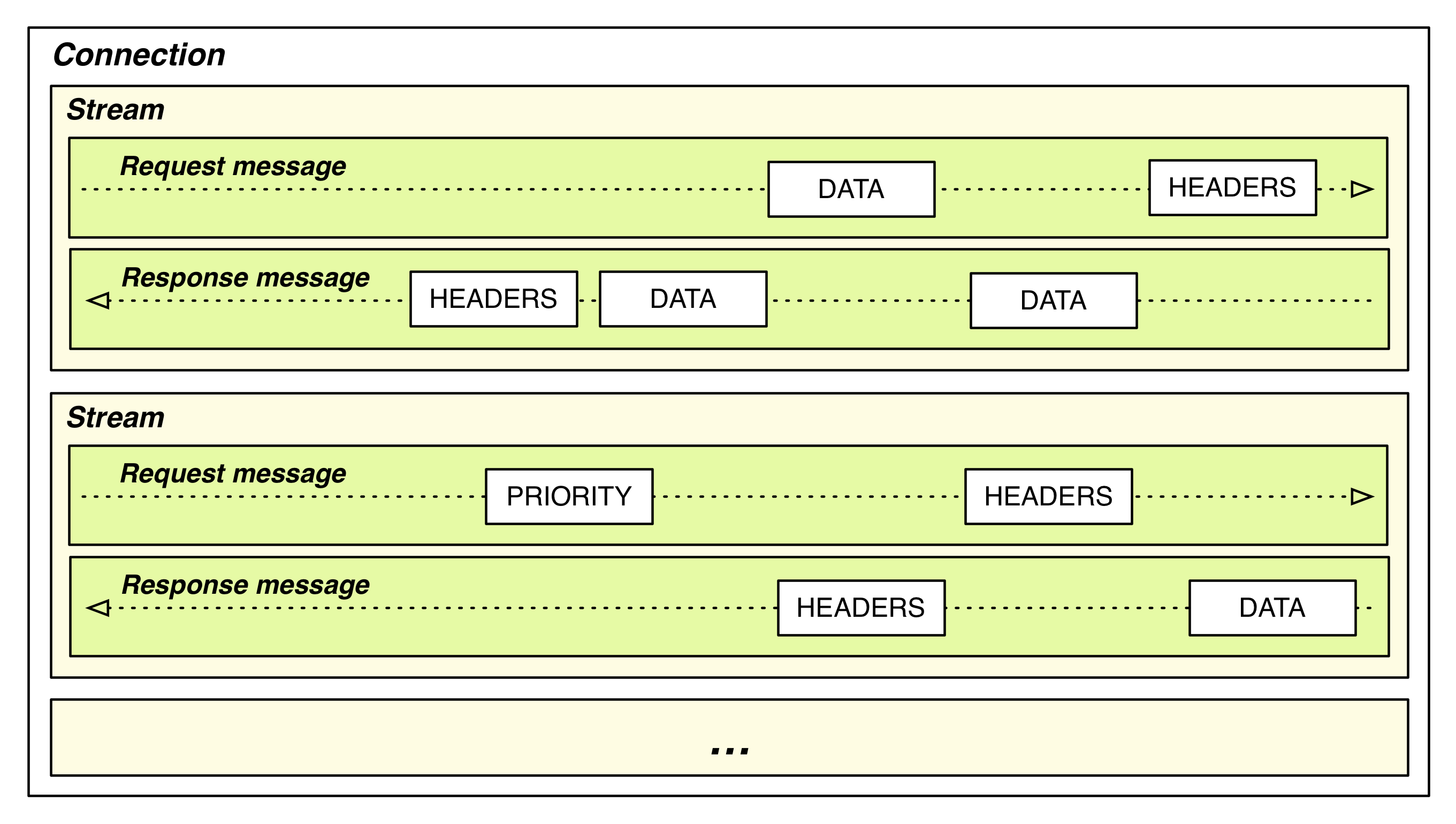

The introduction of the new binary framing mechanism changes how the data is exchanged (Figure 1-2) between the client and server. To describe this process, let’s familiarize ourselves with the HTTP/2 terminology:

Stream

A bidirectional flow of bytes within an established connection, which may carry one or more messages.

Message

A complete sequence of frames that map to a logical request or response message.

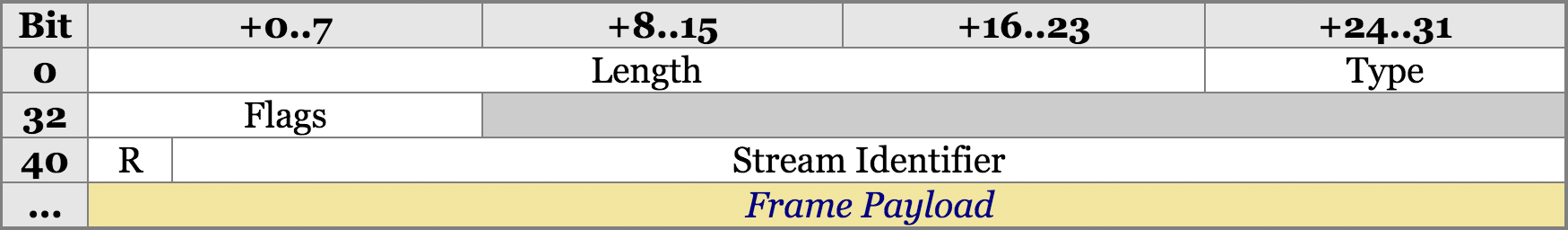

Frame

The smallest unit of communication in HTTP/2, each containing a frame header, which at a minimum identifies the stream to which the frame belongs.

• All communication is performed over a single TCP connection that can carry any number of bidirectional streams.

• Each stream has a unique identifier and optional priority information that is used to carry bidirectional messages.

• Each message is a logical HTTP message, such as a request, or response, which consists of one or more frames.

• The frame is the smallest unit of communication that carries a specific type of data—e.g., HTTP headers, message payload, and so on. Frames from different streams may be interleaved and then reassembled via the embedded stream identifier in the header of each frame.

In short, HTTP/2 breaks down the HTTP protocol communication into an exchange of binary-encoded frames, which are then mapped to messages that belong to a particular stream, all of which are multiplexed within a single TCP connection. This is the foundation that enables all other features and performance optimizations provided by the HTTP/2 protocol.

Request and Response Multiplexing

With HTTP/1.x, if the client wants to make multiple parallel requests to improve performance, then multiple TCP connections must be used⁴. This behavior is a direct consequence of the HTTP/1.x delivery model, which ensures that only one response can be delivered at a time (response queuing) per connection. Worse, this also results in head-of-line blocking and inefficient use of the underlying TCP connection.

The new binary framing layer in HTTP/2 removes these limitations, and enables full request and response multiplexing, by allowing the client and server to break down an HTTP message into independent frames (Figure 1-3), interleave them, and then reassemble them on the other end.

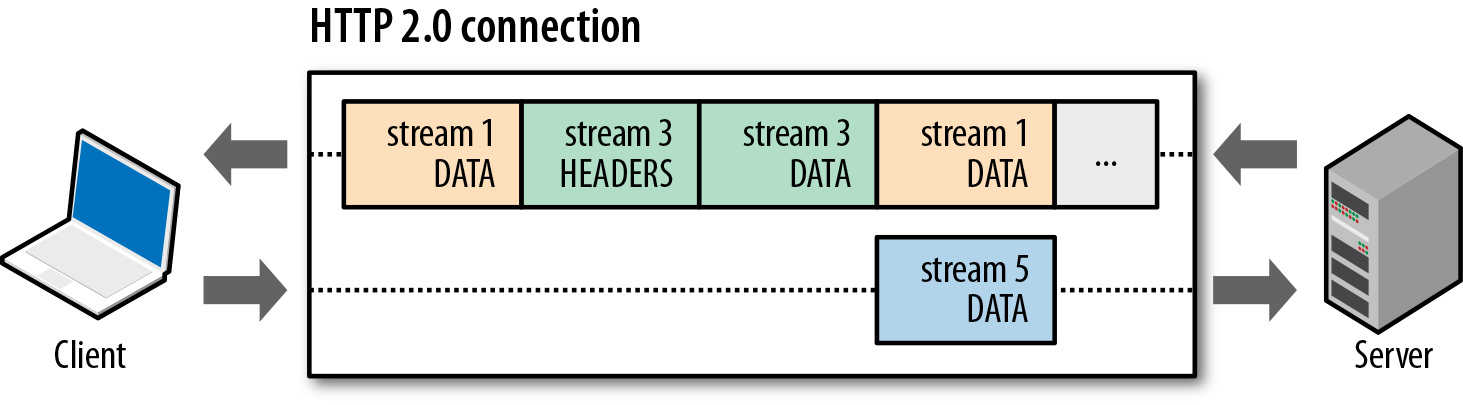

The snapshot in Figure 1-3 captures multiple streams in flight within the same connection: the client is transmitting a DATA frame (stream 5) to the server, while the server is transmitting an interleaved sequence of frames to the client for streams 1 and 3. As a result, there are three parallel streams in flight!

The ability to break down an HTTP message into independent frames, interleave them, and then reassemble them on the other end is the single most important enhancement of HTTP/2. In fact, it introduces a ripple effect of numerous performance benefits across the entire stack of all web technologies, enabling us to:

• Interleave multiple requests in parallel without blocking on any one

• Interleave multiple responses in parallel without blocking on any one

• Use a single connection to deliver multiple requests and responses in parallel

• Remove unnecessary HTTP/1.x workarounds⁵, such as concatenated files, image sprites, and domain sharding

• Deliver lower page load times by eliminating unnecessary latency and improving utilization of available network capacity

• And much more…

The new binary framing layer in HTTP/2 resolves the head-of-line blocking problem found in HTTP/1.x and eliminates the need for multiple connections to enable parallel processing and delivery of requests and responses. As a result, this makes our applications faster, simpler, and cheaper to deploy.

Stream Prioritization

Once an HTTP message can be split into many individual frames, and we allow for frames from multiple streams to be multiplexed, the order in which the frames are interleaved and delivered both by the client and server becomes a critical performance consideration. To facilitate this, the HTTP/2 standard allows each stream to have an associated weight and dependency:

• Each stream may be assigned an integer weight between 1 and 256

• Each stream may be given an explicit dependency on another stream

The combination of stream dependencies and weights allows the client to construct and communicate a “prioritization tree” (Figure 1-4) that expresses how it would prefer to receive the responses. In turn, the server can use this information to prioritize stream processing by controlling the allocation of CPU, memory, and other resources, and once the response data is available, allocation of bandwidth to ensure optimal delivery of high-priority responses to the client.

A stream dependency within HTTP/2 is declared by referencing the unique identifier of another stream as its parent; if omitted the stream is said to be dependent on the “root stream.” Declaring a stream dependency indicates that, if possible, the parent stream should be allocated resources ahead of its dependencies—e.g., please process and deliver response D before response C.

Streams that share the same parent can be prioritized with respect to each other by assigning a weight to each stream: the relative priority of the stream is proportional to its weight as compared to its siblings—e.g., resource A has a weight of 12, and B a weight of 4; A should receive two-thirds of available resources.

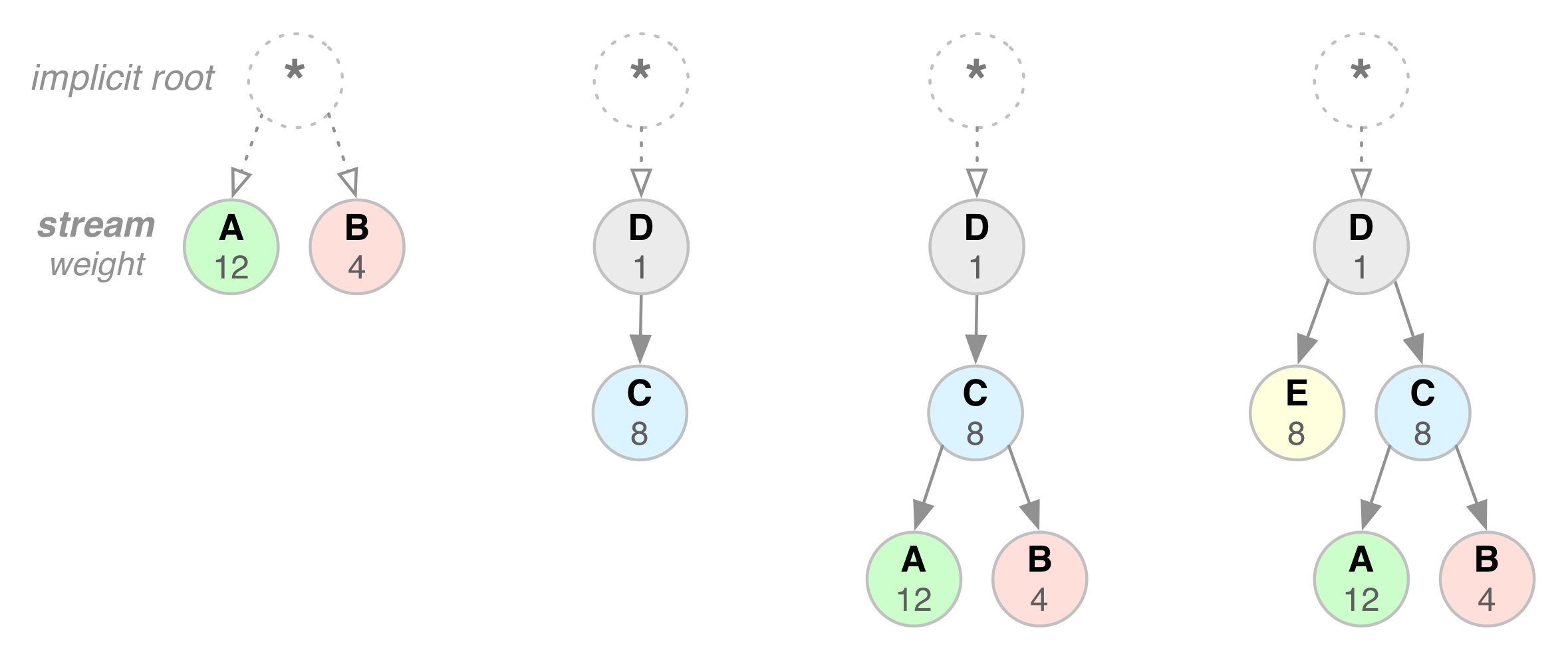

Let’s work through a few hands-on examples in Figure 1-4. From left to right:

1. Neither stream A nor B specify a parent dependency and are said to be dependent on the implicit “root stream”; A has a weight of 12, and B has a weight of 4. Thus, based on proportional weights: A should be assigned two-thirds of available resources, and B should receive the remaining one-third.

2. D is dependent on the root stream; C is dependent on D. Thus, D should receive full allocation of resources ahead of C. The weights are inconsequential because C’s dependency communicates a stronger preference.

3. D should receive full allocation of resources ahead of C; C should receive full allocation of resources ahead of A and B; A should receive two-thirds of available resources, and B should receive the remaining one-third.

4. D should receive full allocation of resources ahead of E and C; E and C should receive equal allocation ahead of A and B; A and B should receive proportional allocation based on their weights.

As the above examples illustrate, the combination of stream dependencies and weights provides an expressive language for resource prioritization, which is a critical feature for improving browsing performance where we have many resource types with different dependencies and weights. Even better, the HTTP/2 protocol also allows the client to update these preferences at any point, which enables further optimizations in the browser—e.g., we can change dependencies and reallocate weights in response to user interaction and other signals.

One Connection Per Origin

With the new binary framing mechanism in place, HTTP/2 no longer needs multiple TCP connections to multiplex streams in parallel; each stream is split into many frames, which can be interleaved and prioritized. As a result, all HTTP/2 connections are persistent, and only one connection per origin is required, which offers numerous performance benefits.

For both SPDY and HTTP/2, the killer feature is arbitrary multiplexing on a single well congestion controlled channel. It amazes me how important this is and how well it works. One great metric around that which I enjoy is the fraction of connections created that carry just a single HTTP transaction (and thus make that transaction bear all the overhead). For HTTP/1, 74% of our active connections carry just a single transaction—persistent connections just aren’t as helpful as we all want. But in HTTP/2 that number plummets to 25%. That’s a huge win for overhead reduction.

HTTP/2 is Live in Firefox, Patrick McManus

Most HTTP transfers are short and bursty, whereas TCP is optimized for long-lived, bulk data transfers. By reusing the same connection, HTTP/2 is able to both make more efficient use of each TCP connection and also significantly reduce the overall protocol overhead. Further, the use of fewer connections reduces the memory and processing footprint along the full connection path (i.e., client, intermediaries, and origin servers), which reduces the overall operational costs and improves network utilization and capacity. As a result, the move to HTTP/2 should not only reduce the network latency, but also help improve throughput and reduce the operational costs.

Flow Control

Flow control is a mechanism to prevent the sender from overwhelming the receiver with data it may not want or be able to process: the receiver may be busy, under heavy load, or may only be willing to allocate a fixed amount of resources for a particular stream. For example, the client may have requested a large video stream with high priority, but the user has paused the video and the client now wants to pause or throttle its delivery from the server to avoid fetching and buffering unnecessary data. Alternatively, a proxy server may have a fast downstream and slow upstream connections and similarly wants to regulate how quickly the downstream delivers data to match the speed of upstream to control its resource usage; and so on.

Do the above requirements remind you of TCP flow control? They should, as the problem is effectively identical⁹. However, because the HTTP/2 streams are multiplexed within a single TCP connection, TCP flow control is both not granular enough, and does not provide the necessary application-level APIs to regulate the delivery of individual streams. To address this, HTTP/2 provides a set of simple building blocks that allow the client and server to implement their own stream- and connection-level flow control:

• Flow control is directional. Each receiver may choose to set any window size that it desires for each stream and the entire connection.

• Flow control is credit-based. Each receiver advertises its initial connection and stream flow control window (in bytes), which is reduced whenever the sender emits a DATA frame and incremented via a WINDOW_UPDATE frame sent by the receiver.

• Flow control cannot be disabled. When the HTTP/2 connection is established the client and server exchange SETTINGS frames, which set the flow control window sizes in both directions. The default value of the flow control window is set to 65,535 bytes, but the receiver can set a large maximum window size (\(2^{31}-1\) bytes) and maintain it by sending a WINDOW_UPDATE frame whenever any data is received.

• Flow control is hop-by-hop, not end-to-end. That is, an intermediary can use it to control resource use and implement resource allocation mechanisms based on own criteria and heuristics.

HTTP/2 does not specify any particular algorithm for implementing flow control. Instead, it provides the simple building blocks and defers the implementation to the client and server, which can use it to implement custom strategies to regulate resource use and allocation, as well as implement new delivery capabilities that may help improve both the real and perceived performance¹⁰ of our web applications.

For example, application-layer flow control allows the browser to fetch only a part of a particular resource, put the fetch on hold by reducing the stream flow control window down to zero, and then resume it later—e.g., fetch a preview or first scan of an image, display it and allow other high priority fetches to proceed, and resume the fetch once more critical resources have finished loading.

Server Push

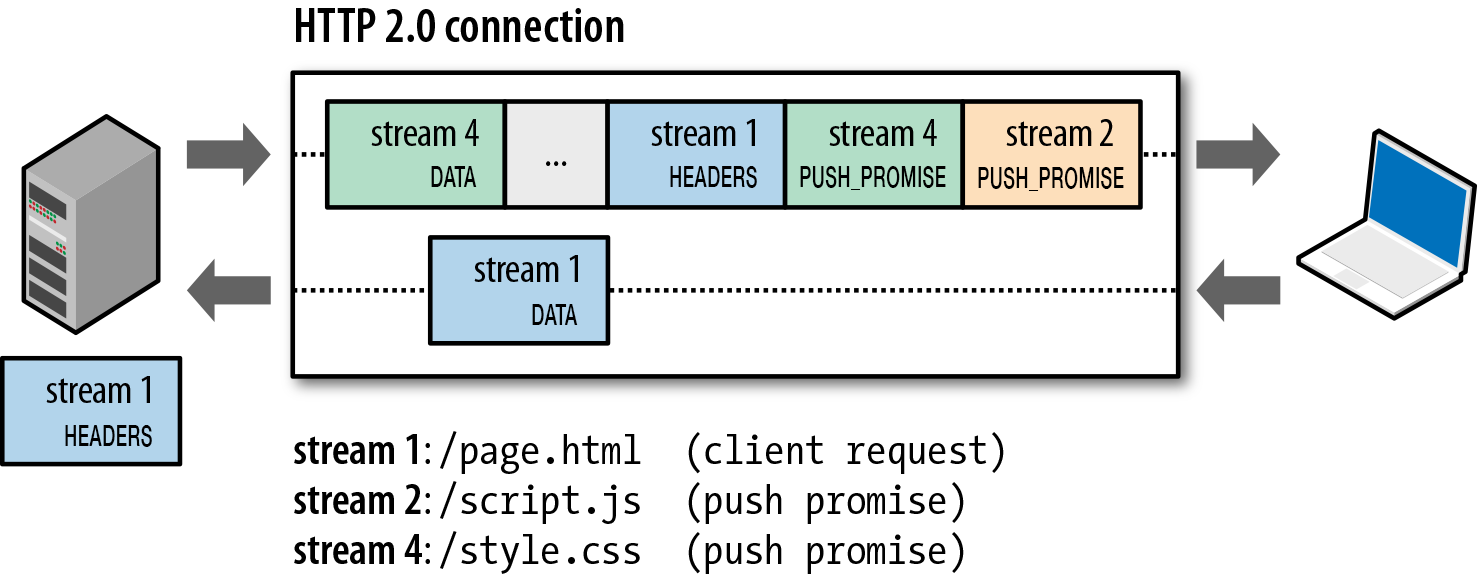

Another powerful new feature of HTTP/2 is the ability of the server to send multiple responses for a single client request. That is, in addition to the response to the original request, the server can push additional resources to the client (Figure 1-5), without the client having to request each one explicitly!

Why would we need such a mechanism in a browser? A typical web application consists of dozens of resources, all of which are discovered by the client by examining the document provided by the server. As a result, why not eliminate the extra latency and let the server push the associated resources ahead of time? The server already knows which resources the client will require; that’s server push.

In fact, if you have ever inlined a CSS, JavaScript, or any other asset via a data URI¹¹, then you already have hands-on experience with server push! By manually inlining the resource into the document, we are, in effect, pushing that resource to the client, without waiting for the client to request it. With HTTP/2 we can achieve the same results, but with additional performance benefits:

• Pushed resources can be cached by the client

• Pushed resources can be reused across different pages

• Pushed resources can be multiplexed alongside other resources

• Pushed resources can be prioritized by the server

• Pushed resources can be declined by the client

Each pushed resource is a stream that, unlike an inlined resource, allows it to be individually multiplexed, prioritized, and processed by the client. The only security restriction, as enforced by the browser, is that pushed resources must obey the same-origin policy: the server must be authoritative for the provided content.

Header Compression

Each HTTP transfer carries a set of headers that describe the transferred resource and its properties. In HTTP/1.x, this metadata is always sent as plain text and adds anywhere from 500–800 bytes of overhead per transfer, and sometimes kilobytes more if HTTP cookies are being used¹². To reduce this overhead and improve performance, HTTP/2 compresses request and response header metadata using the HPACK compression format that uses two simple but powerful techniques:

1. It allows the transmitted header fields to be encoded via a static Huffman code, which reduces their individual transfer size.

2. It requires that both the client and server maintain and update an indexed list of previously seen header fields (i.e., establishes a shared compression context), which is then used as a reference to efficiently encode previously transmitted values.

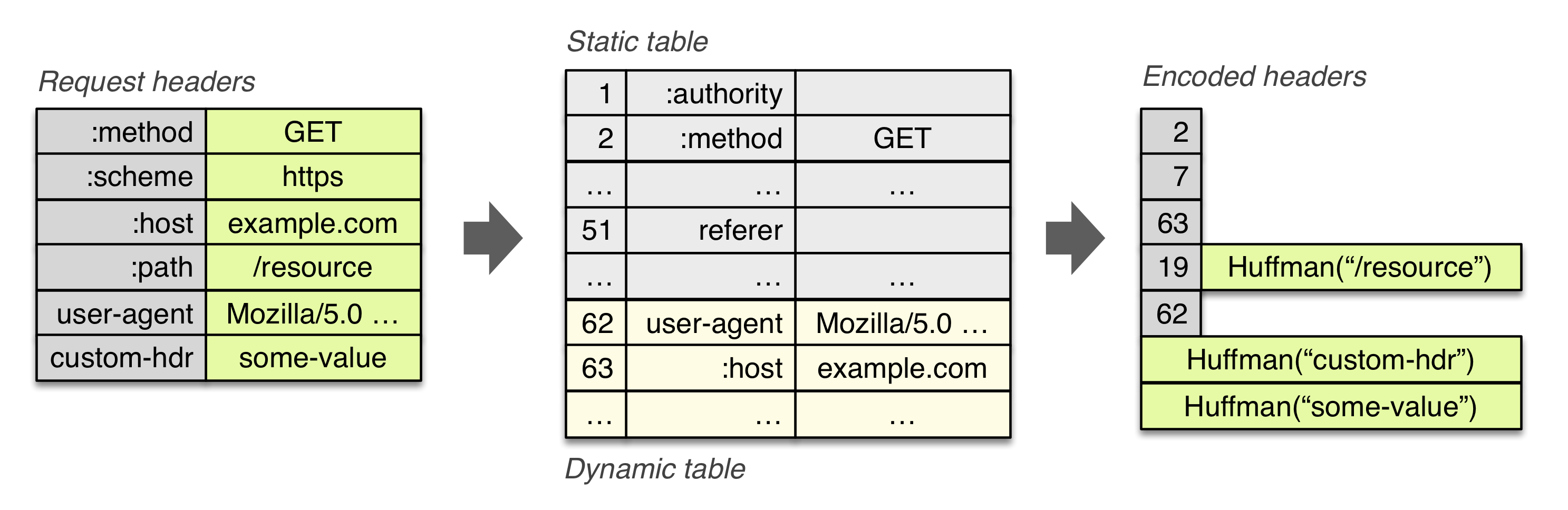

Huffman coding allows the individual values to be compressed when transferred, and the indexed list of previously transferred values allows us to encode duplicate values (Figure 1-6) by transferring index values that can be used to efficiently look up and reconstruct the full header keys and values.

As one further optimization, the HPACK compression context consists of a static and dynamic tables: the static table is defined in the specification and provides a list of common HTTP header fields that all connections are likely to use (e.g., valid header names); the dynamic table is initially empty and is updated based on exchanged values within a particular connection. As a result, the size of each request is reduced by using static Huffman coding for values that haven’t been seen before, and substitution of indexes for values that are already present in the static or dynamic tables on each side.

Upgrading to HTTP/2

The switch to HTTP/2 cannot happen overnight: millions of servers must be updated to use the new binary framing, and billions of clients must similarly update their networking libraries, browsers, and other applications.

The good news is, all modern browsers have committed to supporting HTTP/2, and most modern browsers use efficient background update mechanisms, which have already enabled HTTP/2 support with minimal intervention for a large proportion of existing users. That said, some users will be stuck on legacy browsers, and servers and intermediaries will also have to be updated to support HTTP/2, which is a much longer, and labor- and capital-intensive, process.

HTTP/1.x will be around for at least another decade, and most servers and clients will have to support both HTTP/1.x and HTTP/2 standards. As a result, an HTTP/2 client and server must be able to discover and negotiate which protocol will be used prior to exchanging application data. To address this, the HTTP/2 protocol defines the following mechanisms:

1. Negotiating HTTP/2 via a secure connection with TLS and ALPN

2. Upgrading a plaintext connection to HTTP/2 without prior knowledge

3. Initiating a plaintext HTTP/2 connection with prior knowledge

The HTTP/2 standard does not require use of TLS, but in practice it is the most reliable way to deploy a new protocol in the presence of large number of existing intermediaries¹³. As a result, the use of TLS and ALPN is the recommended mechanism to deploy and negotiate HTTP/2: the client and server negotiate the desired protocol as part of the TLS handshake without adding any extra latency or roundtrips¹⁴. Further, as an additional constraint, while all popular browsers have committed to supporting HTTP/2 over TLS, some have also indicated that they will only enable HTTP/2 over TLS—e.g., Firefox and Google Chrome. As a result, TLS with ALPN negotiation is a de-facto requirement for enabling HTTP/2 in the browser.

Establishing an HTTP/2 connection over a regular, non-encrypted channel is still possible, albeit perhaps not with a popular browser, and with some additional complexity. Because both HTTP/1.x and HTTP/2 run on the same port (80), in absence of any other information about server support for HTTP/2, the client has to use the HTTP Upgrade mechanism to negotiate the appropriate protocol:

GET /page HTTP/1.1
Host: server.example.com
Connection: Upgrade, HTTP2-Settings
Upgrade: h2c
HTTP2-Settings: (SETTINGS payload)

HTTP/1.1 200 OK
Content-length: 243
Content-type: text/html

(... HTTP/1.1 response ...)

          (or)

HTTP/1.1 101 Switching Protocols
Connection: Upgrade
Upgrade: h2c

(... HTTP/2 response ...)

Initial HTTP/1.1 request with HTTP/2 upgrade header

Base64 URL encoding of HTTP/2 SETTINGS payload

Server declines upgrade, returns response via HTTP/1.1

Server accepts HTTP/2 upgrade, switches to new framing

Using the preceding Upgrade flow, if the server does not support HTTP/2, then it can immediately respond to the request with HTTP/1.1 response. Alternatively, it can confirm the HTTP/2 upgrade by returning the 101 Switching Protocols response in HTTP/1.1 format and then immediately switch to HTTP/2 and return the response using the new binary framing protocol. In either case, no extra roundtrips are incurred.

Finally, if the client chooses to, it may also remember or obtain the information about HTTP/2 support through some other means—e.g., DNS record, manual configuration, and so on—instead of having to rely on the Upgrade workflow. Armed with this knowledge, it may choose to send HTTP/2 frames right from the start, over an unencrypted channel, and hope for the best. In the worst case, the connection will fail, and the client will fall back to Upgrade workflow or switch to a TLS tunnel with ALPN negotiation.

Initiating a New Stream

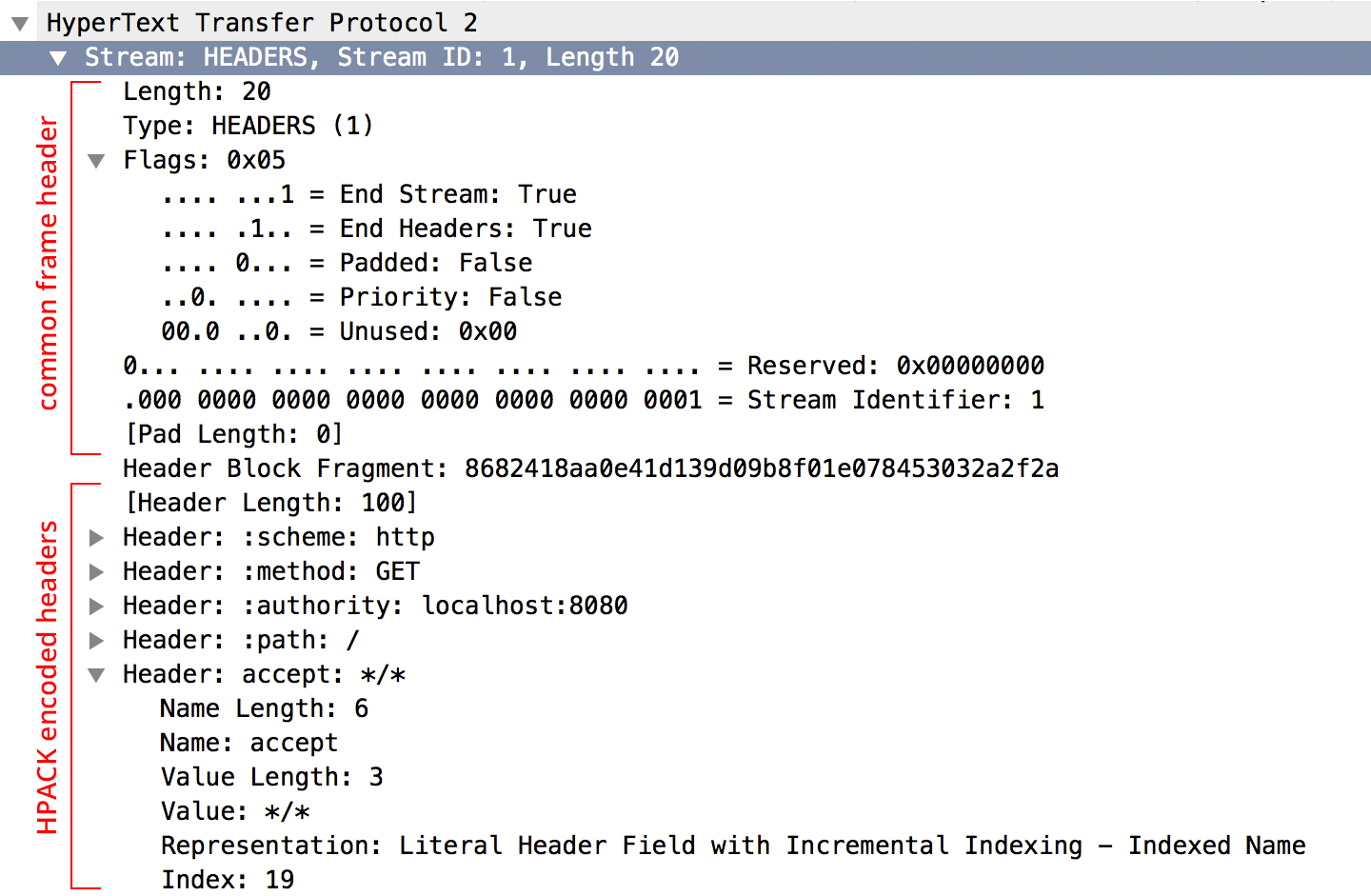

Before any application data can be sent, a new stream must be created and the appropriate request metadata must be sent: optional stream dependency and weight, optional flags, and the HPACK-encoded HTTP request headers describing the request. The client initiates this process by sending a HEADERS frame (Figure 1-8) with all of the above.

The HEADERS frame is used to declare and communicate metadata about the new request. The application payload, if available, is delivered independently within the DATA frames. This separation allows the protocol to separate processing of “control traffic” from delivery of application data—e.g., flow control is applied only to DATA frames, and non-DATA frames are always processed with high priority.

Sending Application Data

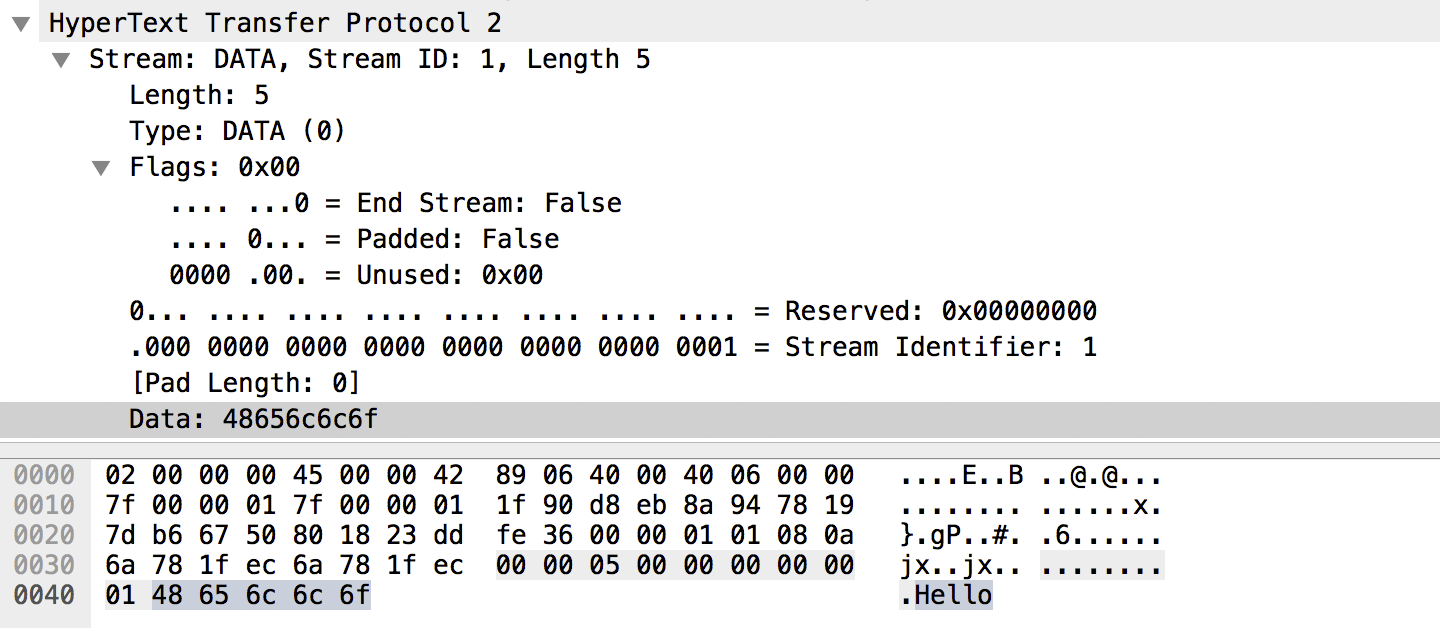

Once a new stream is created, and the HTTP headers are sent, DATA frames (Figure 1-9) are used to send the application payload if one is present. The payload can be split between multiple DATA frames, with the last frame indicating the end of the message by toggling the END_STREAM flag in the header of the frame.

Aside from the length and flags fields, there really isn’t much more to say about the DATA frame. The application payload may be split between multiple DATA frames to enable efficient multiplexing, but otherwise it is delivered exactly as provided by the application—i.e., the choice of the encoding mechanism (plain text, gzip, or other encoding formats) is deferred to the application.

Analyzing HTTP/2 Frame Data Flow

Armed with knowledge of the different frame types, we can now revisit the diagram (Figure 1-10) we encountered earlier in Request and Response Multiplexing and analyze the HTTP/2 exchange:

• There are three streams, with IDs set to 1, 3, and 5.

• All three stream IDs are odd; all three are client-initiated streams.

• There are no server-initiated (“push”) streams in this exchange.

• The server is sending interleaved DATA frames for stream 1, which carry the application response to the client’s earlier request.

• The server has interleaved the HEADERS and DATA frames for stream 3 between the DATA frames for stream 1—response multiplexing in action!

• The client is transferring a DATA frame for stream 5, which indicates that a HEADERS frame was transferred earlier.

The above analysis is, of course, based on a simplified representation of an actual HTTP/2 exchange, but it still illustrates many of the strengths and features of the new protocol. By this point, you should have the necessary knowledge to successfully record and analyze a real-world HTTP/2 trace—give it a try!
